IGBT Modules

Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.

---

Microsemi Corporation APTGT50A60T1G

IGBT MOD TRENCH PHASE LEG SP1

0.2

Microsemi Corporation APTGT50A120TG

IGBT MOD TRENCH PHASE LEG SP4

0.2

Microsemi Corporation APTGT75SK120T1G

IGBT 1200V 110A 357W SP1

0.2

Microsemi Corporation APTGT75SK120D1G

IGBT 1200V 110A 357W D1

0.2

Microsemi Corporation APTGT75DSK60T3G

IGBT MOD TRENCH DL BUCK CHOP SP3

0.2

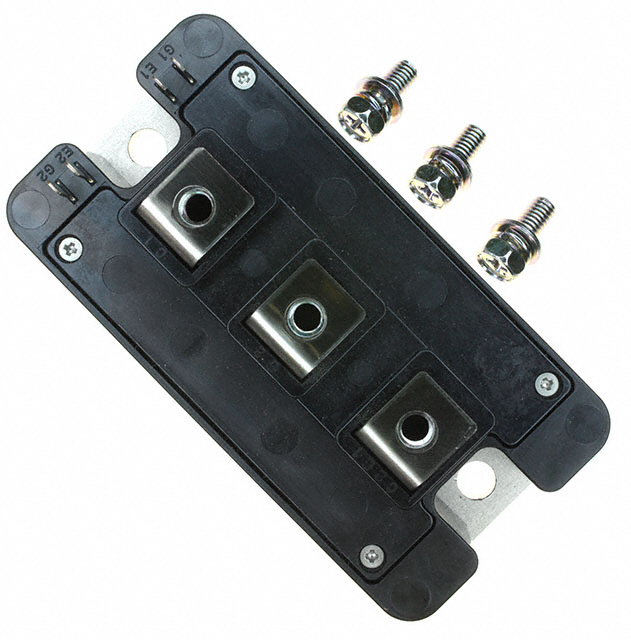

Powerex, Inc. CM200DY-12NF

IGBT MOD DUAL 600V 200A NF SER

0.2

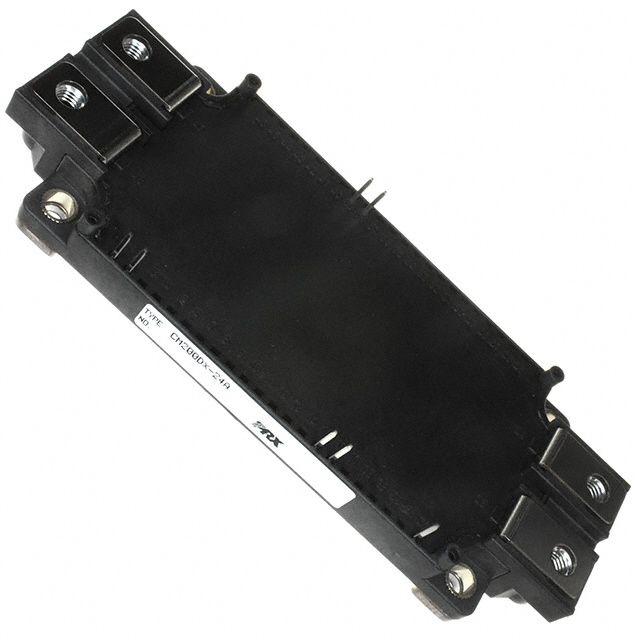

Powerex, Inc. CM200DX-24A

IGBT MOD DUAL 1200V 200A NX SER

0.2

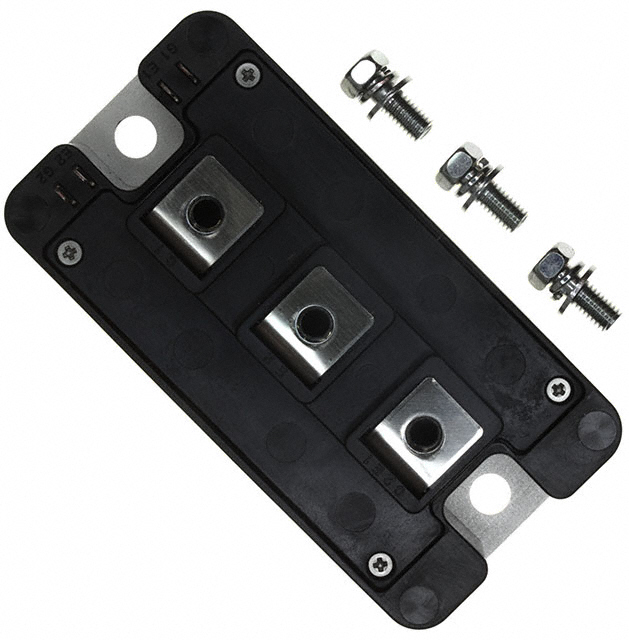

Powerex, Inc. CM150DY-12NF

IGBT MOD DUAL 600V 150A NF SER

0.2
