IGBT Modules

Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.

---

Infineon Technologies BSM50GB60DLCHOSA1

IGBT MODULE 600V 75A

0.2

Vishay / Semiconductor - Diodes Division VS-GB50LP120N

IGBT 1200V 100A 446W INT-A-PAK

0.2

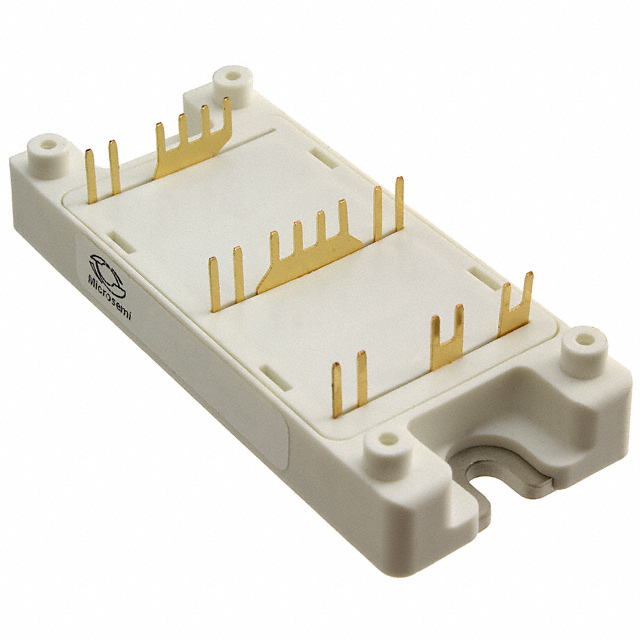

Microsemi Corporation APTGT100DU60TG

POWER MOD IGBT TRENCH DL SRC SP4

0.2

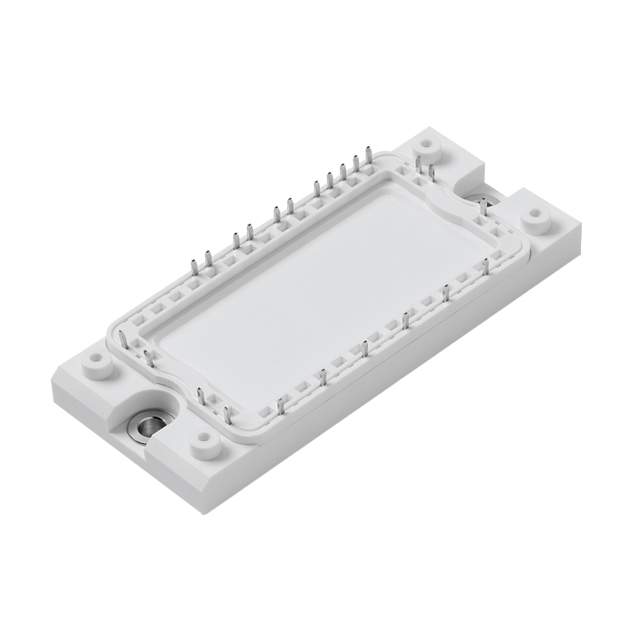

Infineon Technologies FS75R12W2T4B11BOMA1

MOD IGBT LOW PWR EASY2B-2

0.2

Littelfuse Inc. MG1215H-XBN2MM

IGBT MOD 1200V 15A PKG H CRCT:XB

0.2

IXYS IXGE200N60B

IGBT 600V ISOPLUS227

0.2

Infineon Technologies BSM75GB60DLCHOSA1

IGBT MODULE 600V 100A

0.2

Microsemi Corporation APT50GF120JRDQ3

IGBT 1200V 120A 521W SOT227

0.2
