Balun

A Balun is a device designed to connect two circuits by converting or unconverting balanced and unbalanced loads. The characteristics are frequency range, impedance -unbalanced/balanced, phase difference, insertion loss, and return loss. The frequency range is from 10kHz to 23.6GHz with an impedance from 1:1 to 100/100Ohm and a phase difference from -155° ±15° to 195°.

---

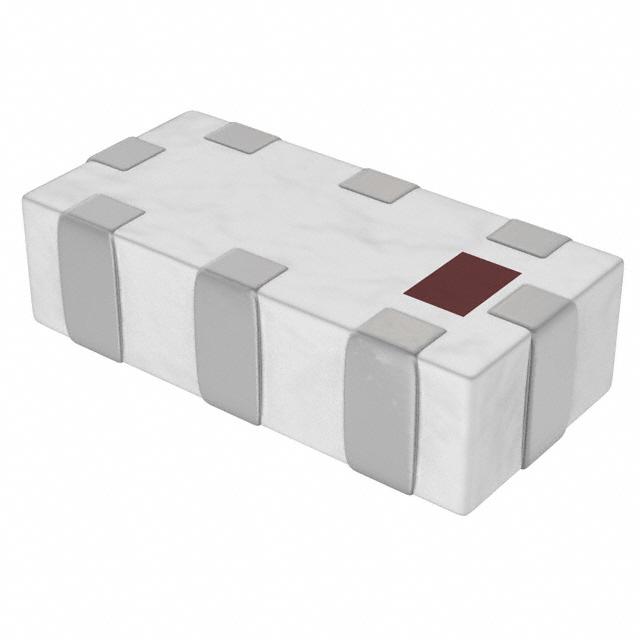

Johanson Technology Inc. 1600BL15B050E

BALUN 1.5GHZ-1.7GHZ 50/50 0805

0

Johanson Technology Inc. 0900BL15C050E

BALUN 800MHZ-1GHZ 50/50 0805

0

Johanson Technology Inc. 2450BM15A0002E

BALUN 2.4GHZ-2.5GHZ 0805

0

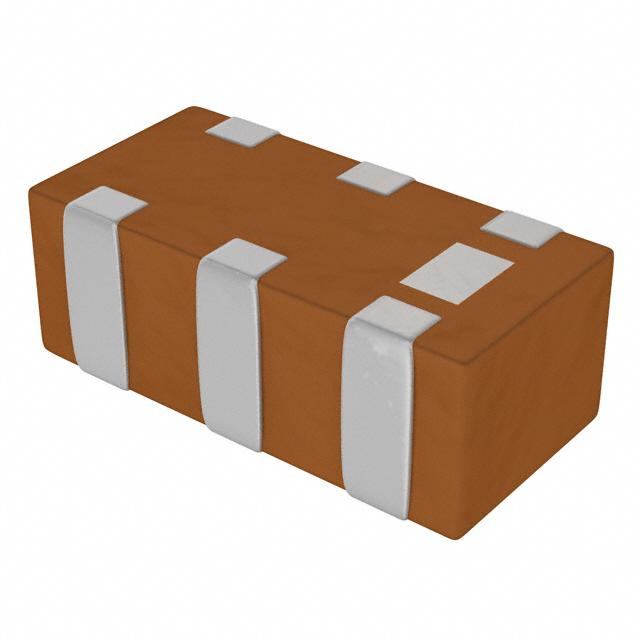

TDK Corporation ATB2012-50011-T000

BALUN 40MHZ-860MHZ 50/50 0805

0

Johanson Technology Inc. 0850BM14E0016T

BALUN 770MHZ-928MHZ 50/50 0603

0

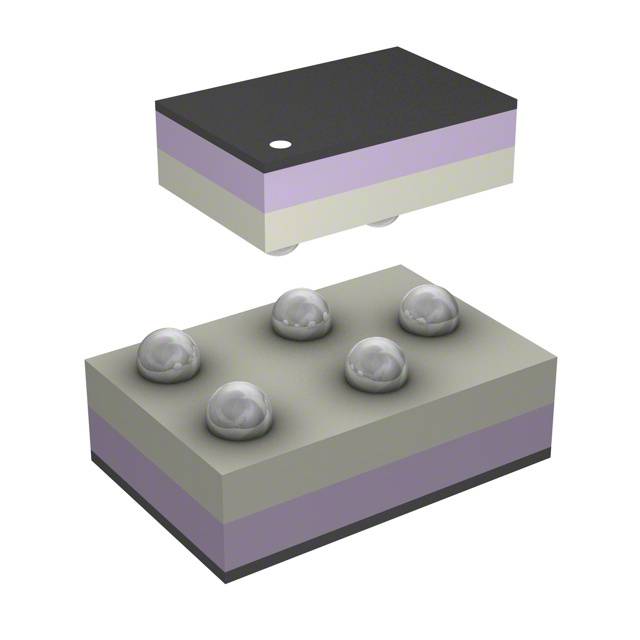

STMicroelectronics BAL-NRF02D3

BALUN 2.4-2.54GHZ 5UFBGA CSPBGA

0

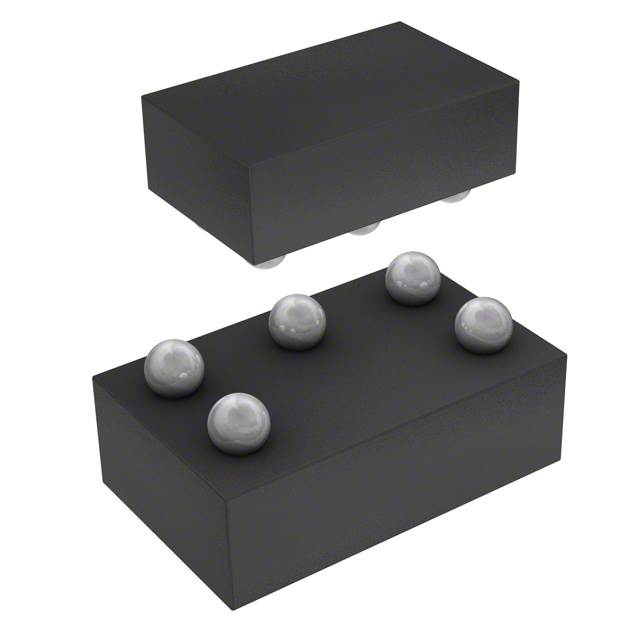

STMicroelectronics BALF-NRF01D3

BALUN 2.4GHZ-2.5GHZ 50/50 5UFBGA

0

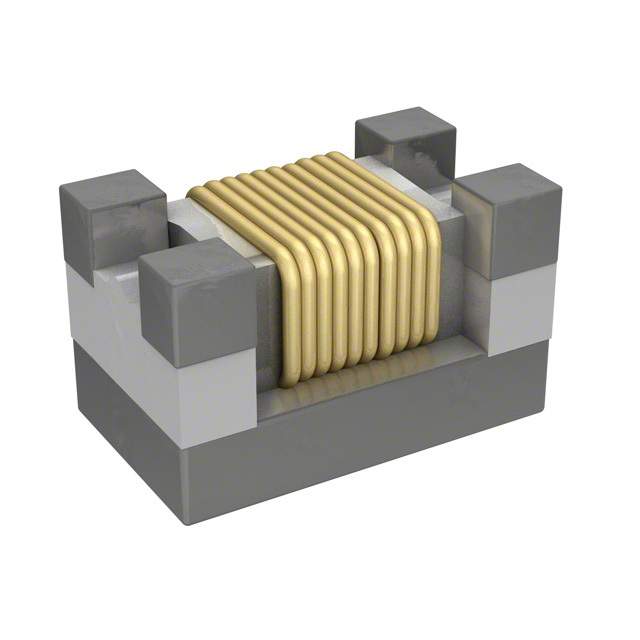

TDK Corporation HHM1522B1

BALUN 880MHZ-960MHZ 50/50 0805

0
