Balun

A Balun is a device designed to connect two circuits by converting or unconverting balanced and unbalanced loads. The characteristics are frequency range, impedance -unbalanced/balanced, phase difference, insertion loss, and return loss. The frequency range is from 10kHz to 23.6GHz with an impedance from 1:1 to 100/100Ohm and a phase difference from -155° ±15° to 195°.

---

Johanson Technology Inc. 2450BM15B0002E

BALUN 2.4GHZ-2.5GHZ 0805

0

Anaren BD2425N50ATI

BALUN 2.3GHZ-2.6GHZ 0404

0

Anaren BD1631J50100AHF

BALUN 1.6GHZ-3.1GHZ 50/100 0805

0

Anaren BD1222J50200AHF

BALUN 1.2GHZ-2.2GHZ 50/200 0805

0

Anaren BD0810J50100AHF

BALUN 800MHZ-1GHZ 50/100 0805

0

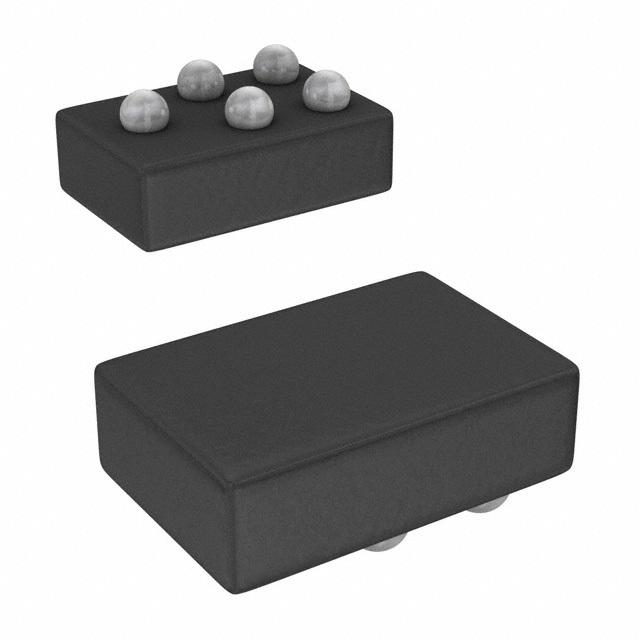

STMicroelectronics BAL-NRF01D3

BALUN 2.4GHZ-2.54GHZ 5WFBGA

0

TDK Corporation ATB2012E-50011M-T01

BALUN 400MHZ-1.8GHZ 50/50 0805

0.26

Johanson Technology Inc. 5400BL15B100E

BALUN 4.9GHZ-5.9GHZ 50/100 0805

0
