Balun

A Balun is a device designed to connect two circuits by converting or unconverting balanced and unbalanced loads. The characteristics are frequency range, impedance -unbalanced/balanced, phase difference, insertion loss, and return loss. The frequency range is from 10kHz to 23.6GHz with an impedance from 1:1 to 100/100Ohm and a phase difference from -155° ±15° to 195°.

---

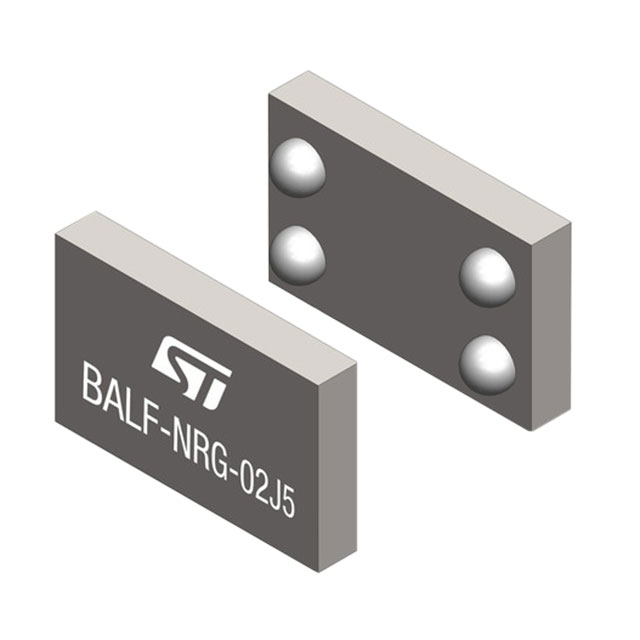

STMicroelectronics BALF-NRG-02J5

50 OHM ULTRA THIN BALUN WITH

0

Walsin Technology Corporation RFBLN1608060AF6T50

BALUN 2.4GHZ-2.5GHZ 0603

0.58

Anaren BD4859N5050AHF

BALUN 4.8GHZ-5.9GHZ 50/50 0404

0

TDK Corporation TTB12G51-900-2P

BALUN 174MHZ-860MHZ 50/50 4SMD

0.23

Johanson Technology Inc. 5400BL15B050E

BALUN 4.9GHZ-5.9GHZ 50/50 0805

0

Johanson Technology Inc. 0868BM15G0027E

BALUN 865MHZ-870MHZ 50 0805

0

TDK Corporation HHM1603A1

BALUN 2.3GHZ-2.7GHZ 50/100 4SMD

0

TDK Corporation ATB2012E-75011M-T000

BALUN 400MHZ-1.8GHZ 75/75 0805

0
