Balun

A Balun is a device designed to connect two circuits by converting or unconverting balanced and unbalanced loads. The characteristics are frequency range, impedance -unbalanced/balanced, phase difference, insertion loss, and return loss. The frequency range is from 10kHz to 23.6GHz with an impedance from 1:1 to 100/100Ohm and a phase difference from -155° ±15° to 195°.

---

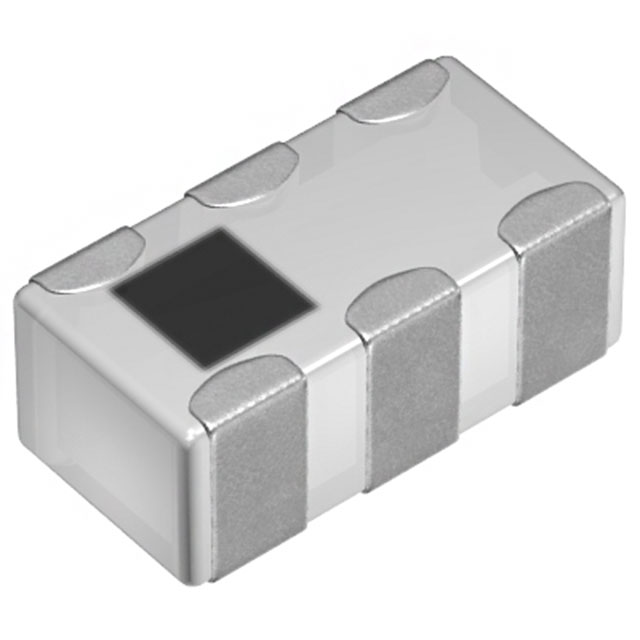

TDK Corporation HHM15112A1

BALUN 900MHZ-2.2GHZ 75/100 0805

0.65

TDK Corporation HHM1713E2

MULTILAYER BALUN FOR 2400 - 2500

0

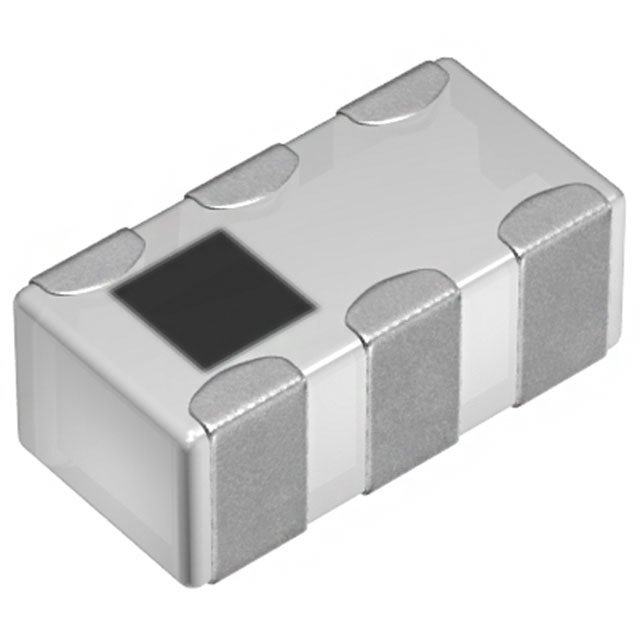

TDK Corporation ATB2012E-20011-T06

BALUN 13.56MHZ 20/20 0805

0.26

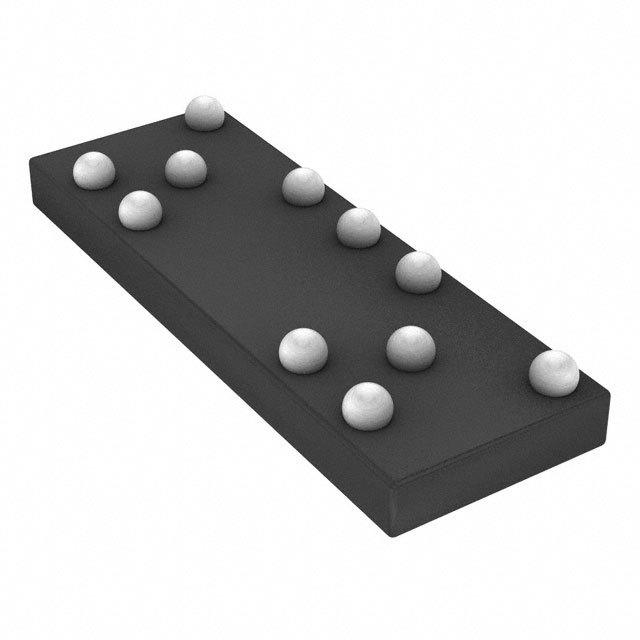

STMicroelectronics DLPF-GP-01D3

BALUN 2.4-2.5GHZ 100/100 16SMD

0.58

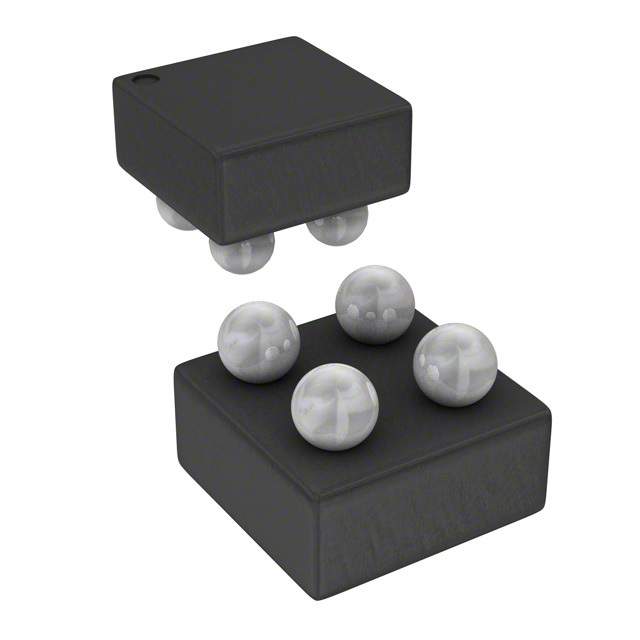

STMicroelectronics BAL-2690D3U

BALUN 2.402GHZ-2.48GHZ 4WFBGA

0

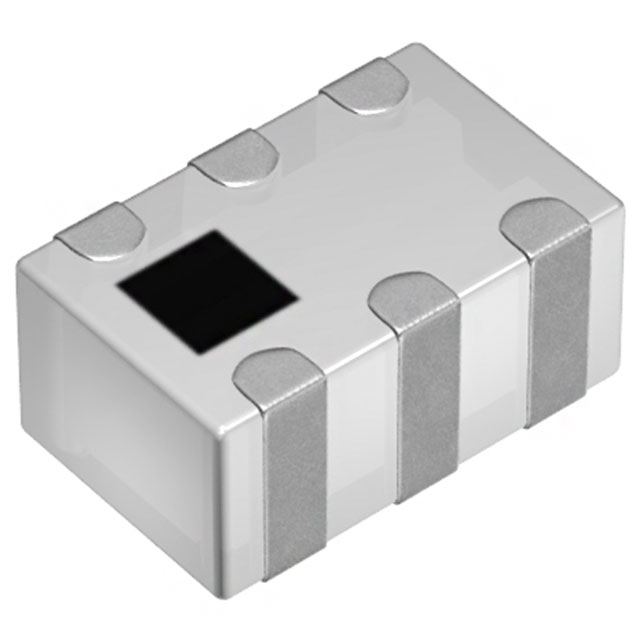

TDK Corporation HHM1711Q1

BALUN 2.3GHZ-3.8GHZ 50/100 0603

0.11

TDK Corporation HHM1749S1

BALUN 1.71-1.99GHZ 50/100 0603

0.35

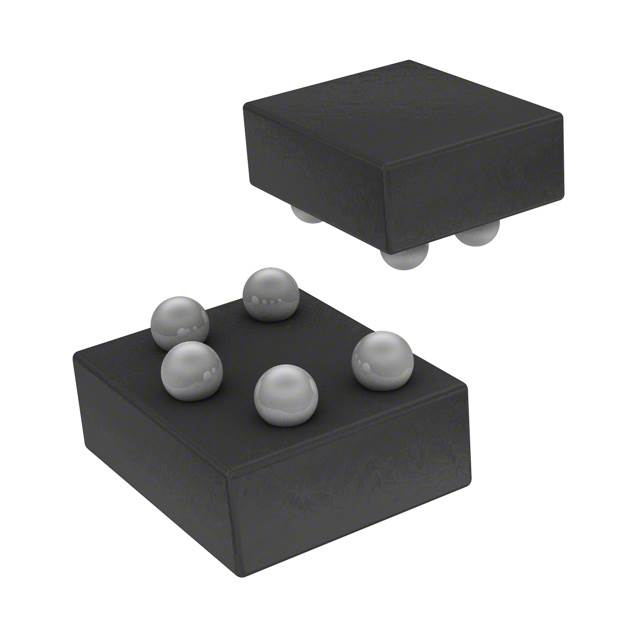

STMicroelectronics BAL-CW1250D3

BALUN 2.4GHZ-2.5GHZ 5UFBGA FCBGA

0
